Dubbo基础使用&Java应用打包部署

在 上张贴 由 MartinHeDubbo基础使用&Java应用打包部署已关闭评论

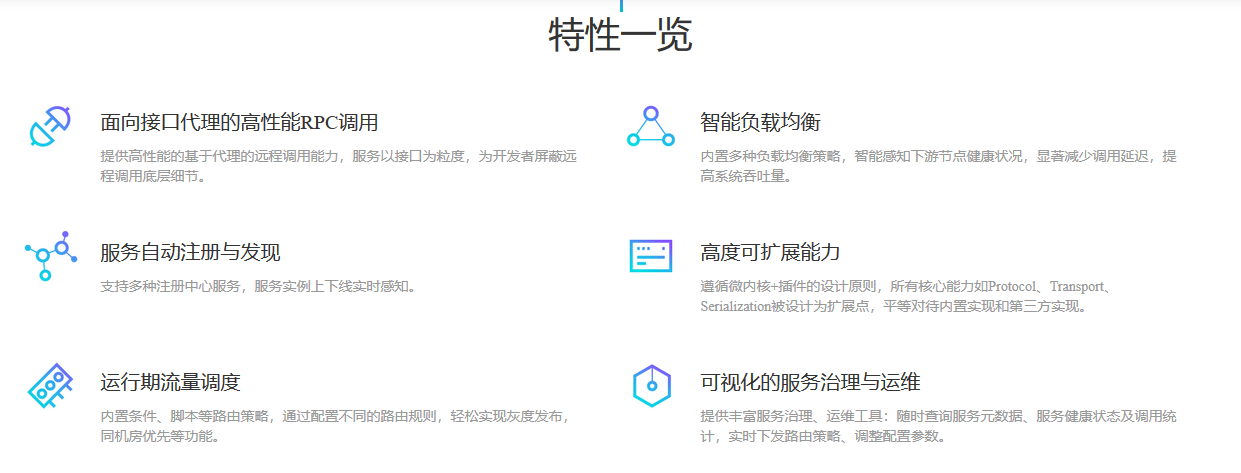

dubbo简介：

官方网址：

http://dubbo.apache.org/zh-cn/index.html

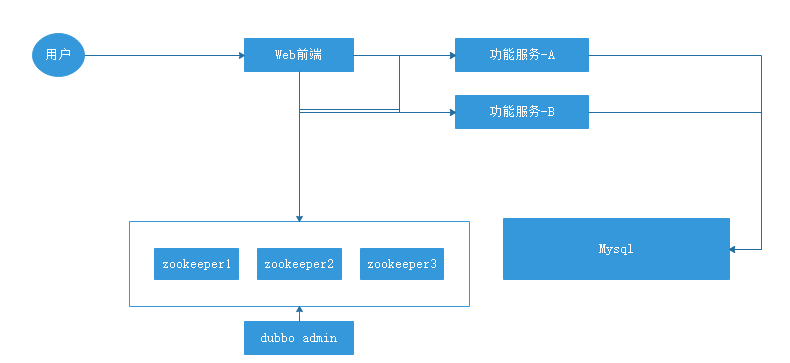

dubbo草图架构：

首先Java环境已经配好，准备zookeeper集群，参照博文：

Kafka部署和使用-zookeeper集群

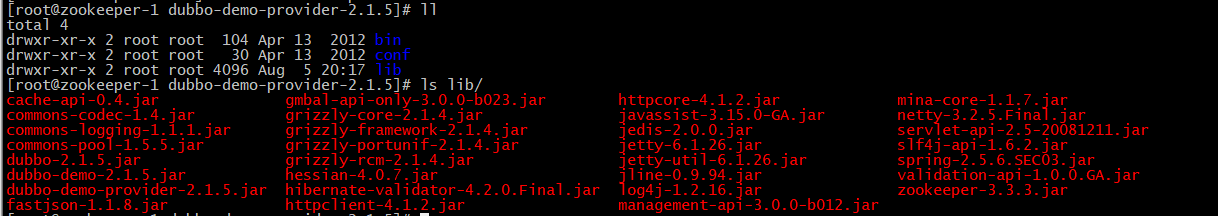

dubbo-provider安装包目录（可安装在zookeeper集群服务器，但最好单独安装一台服务器）：

[root@zookeeper-1 src]# ll
drwxr-xr-x  5 root root        40 Aug  5 20:17 dubbo-demo-provider-2.1.5
-rw-r--r--  1 root root  10281793 May  1 11:26 dubbo-demo-provider-2.1.5-assembly.tar.gz

dubbo配置文件使用zookeeper注册中心：

[root@zookeeper-1 dubbo-demo-provider-2.1.5]# grep -v "^#" conf/dubbo.properties
dubbo.container=log4j,spring
dubbo.application.name=demo-provider
dubbo.application.owner=
dubbo.registry.address=zookeeper://172.20.102.41:2181 | zookeeper://172.20.102.48:2181 | zookeeper://172.20.102.50:2181
dubbo.monitor.protocol=registry
dubbo.protocol.name=dubbo
dubbo.protocol.port=20880
dubbo.log4j.file=logs/dubbo-demo-provider.log
dubbo.log4j.level=WARN

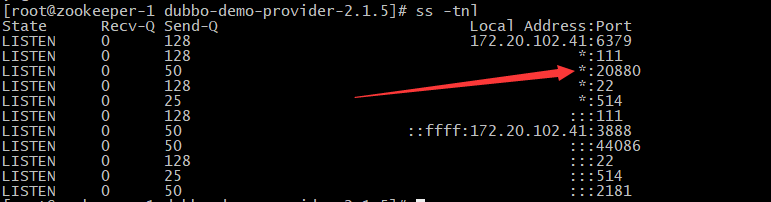

启动dubbo-provider：

[root@zookeeper-1 dubbo-demo-provider-2.1.5]# ./bin/start.sh
Starting the demo-provider ....Ncat: Connection refused.
.Ncat: Connection refused.
.Ncat: Idle timeout expired (1000 ms).
.Ncat: Idle timeout expired (1000 ms).

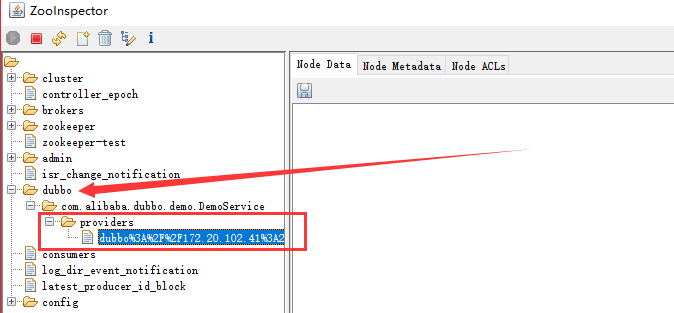

使用工具连接zookeeper服务，查看注册到中心的dubbo-provider：

dubbo-consumer包上传到另一台服务器上，此服务不能跑在zookeerper集群服务器上，可跑多个消费者，如上述修改类似：

[root@zookeeper-3 src]# ll
total 282344
drwxr-xr-x  5 root   root          40 Aug  5 20:48 dubbo-demo-consumer-2.1.5
-rw-r--r--  1 root   root    10282529 May  1 11:26 dubbo-demo-consumer-2.1.5-assembly.tar.gz

修改配置文件后启动dubbo-consumer服务

[Mon Aug 05 20:56
 root@logstash-2 /usr/local/src/dubbo-demo-consumer-2.1.5]#./bin/start.sh
Starting the demo-consumer ....OK!
PID: 15469
STDOUT: logs/stdout.log

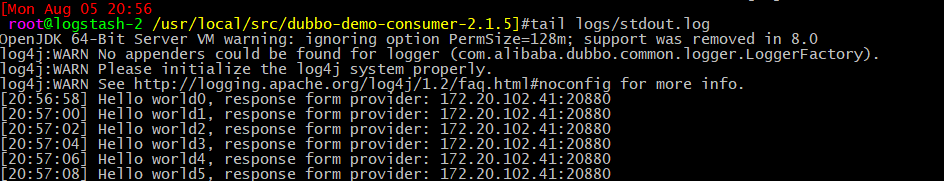

正常情况下，日志输出：

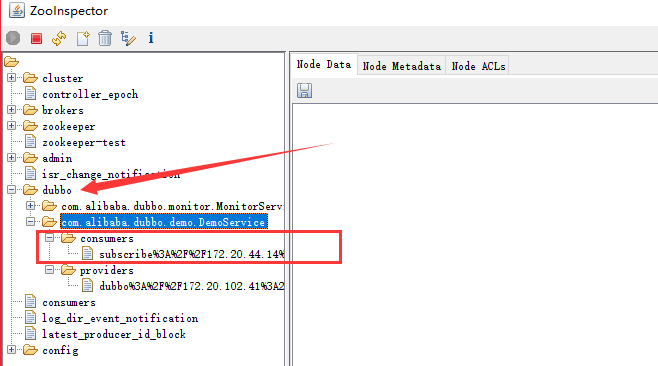

使用工具连接zookeeper服务，查看注册到中心的dubbo-consumer：

配置一台dubbo-admin，需要使用tomcat，dubbo-admin的war包基于java开发，需要tomcat将其运行起来。

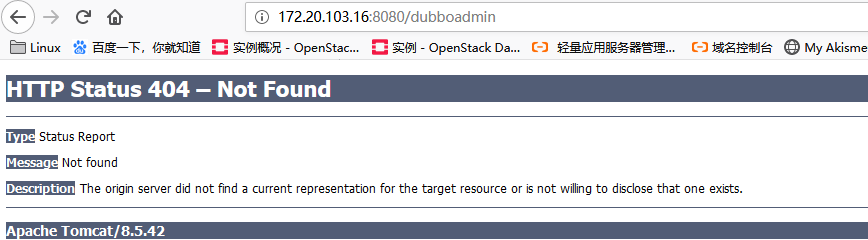

运行起来后，修改tomcat默认站点目录为/data/tomcat/webapps，将dubboadmin.war放到站点目录中，启动tomcat,访问站点， 由于未修改内部配置zookeeper地址，所以无法访问页面

http://172.20.103.16:8080/dubboadmin

修改配置文件：

vim dubboadmin/WEB-INF/dubbo.properties

dubbo.registry.address=zookeeper://zookeeper1.injured-test.svc.cluster.local:2181 | zookeeper://zookeeper2.injured-test.svc.cluster.local:2181 | z
dubbo.registry.address=zookeeper://172.20.102.41:2181 | zookeeper://172.20.102.48:2181 | zookeeper://172.20.102.50:2181
dubbo.admin.root.password=root
dubbo.admin.guest.password=guest

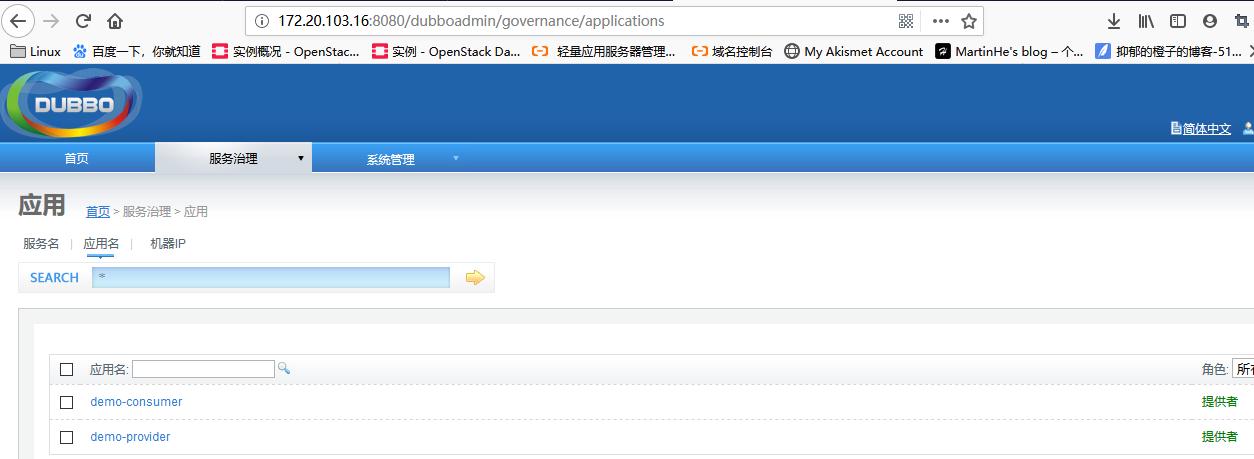

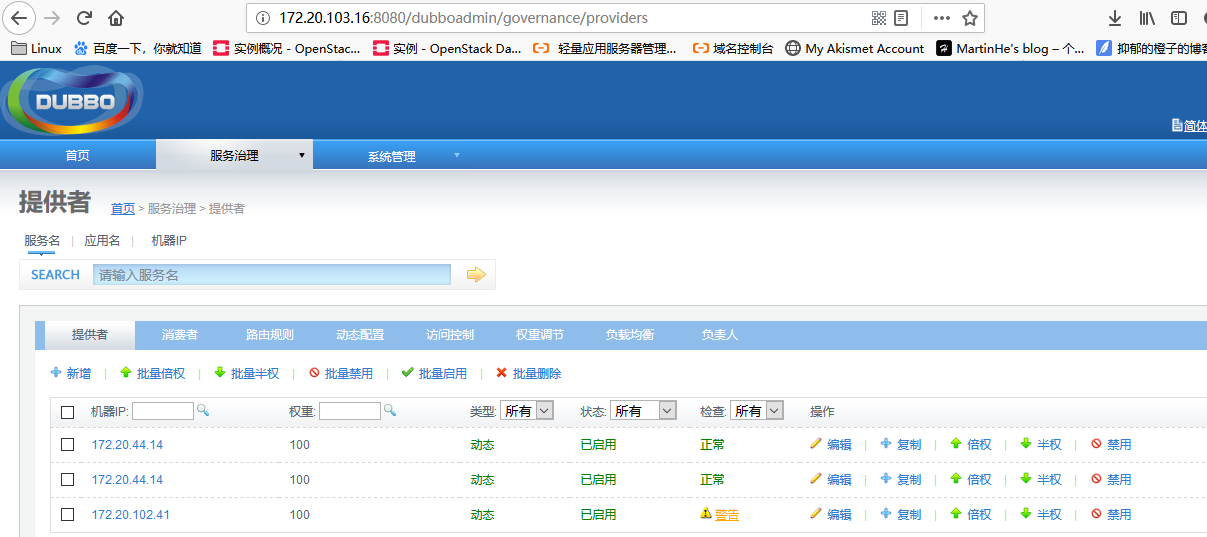

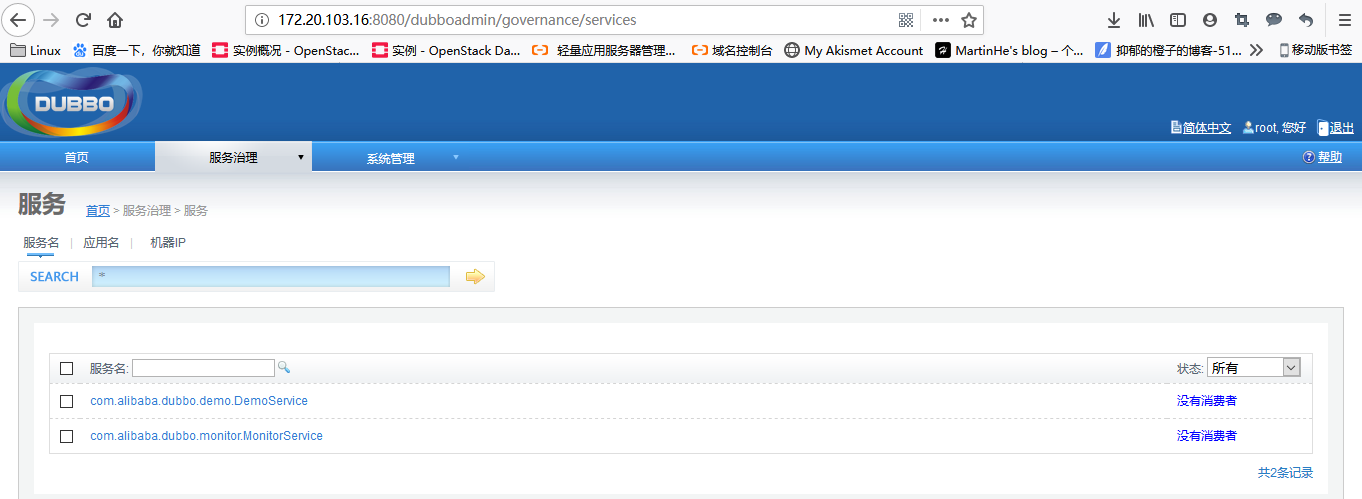

重启tomcat服务后，访问站点(用户名和密码在配置文件中)：

基于java源代码进行构建：

Github上apache/dubbo-admin源代码地址：

https://github.com/apache/dubbo-admin

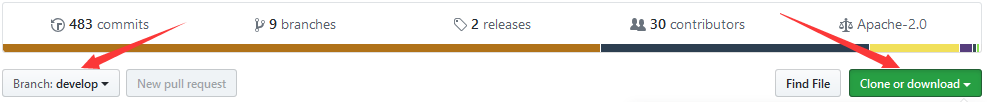

下载dubbo-admin-develop.zip上传到带java环境的主机上。
查看部署文档：

https://github.com/apache/dubbo-admin/blob/develop/README_ZH.md

生产环境配置

    下载代码: git clone https://github.com/apache/dubbo-admin.git

    在 dubbo-admin-server/src/main/resources/application.properties中指定注册中心地址

    构建

            mvn clean package

    启动
        mvn --projects dubbo-admin-server spring-boot:run
        或者
        cd dubbo-admin-distribution/target; java -jar dubbo-admin-0.1.jar

    访问 http://localhost:8080


[root@dubbo-admin dubbo-admin-develop]# grep -v "^#" dubbo-admin-server/src/main/resources/application.properties

admin.registry.address=dubbo.registry.address=zookeeper://172.20.102.41:2181 | zookeeper://172.20.102.48:2181 | zookeeper://172.20.102.50:2181
admin.config-center=dubbo.registry.address=zookeeper://172.20.102.41:2181 | zookeeper://172.20.102.48:2181 | zookeeper://172.20.102.50:2181
admin.metadata-report.address=dubbo.registry.address=zookeeper://172.20.102.41:2181 | zookeeper://172.20.102.48:2181 | zookeeper://172.20.102.50:2181

admin.registry.group=dubbo
admin.config-center.group=dubbo
admin.metadata-report.group=dubbo

admin.apollo.token=e16e5cd903fd0c97a116c873b448544b9d086de9
admin.apollo.appId=test
admin.apollo.env=dev
admin.apollo.cluster=default
admin.apollo.namespace=dubbo

在源代码目录中执行构建，该目录下有一个pom.xml,为开发写好的构建代码,执行构建的过程中，会从官方拉取很多jar包，如果有内网maven源，可加快打包速度:
# mvn clean package

打包完成后，会在下列目录中生成一个target文件夹：
[root@dubbo-admin dubbo-admin-develop]# ll dubbo-admin-distribution/

在dubbo-admin-distribution/pom.xml目录内过滤target,内部定义了打包后存储地址:
[root@dubbo-admin dubbo-admin-develop]# grep target -R dubbo-admin-distribution/pom.xml
                                <copy file="../dubbo-admin-server/target/dubbo-admin-server-${project.version}.jar"
                                      tofile="target/dubbo-admin-${project.version}.jar"/>

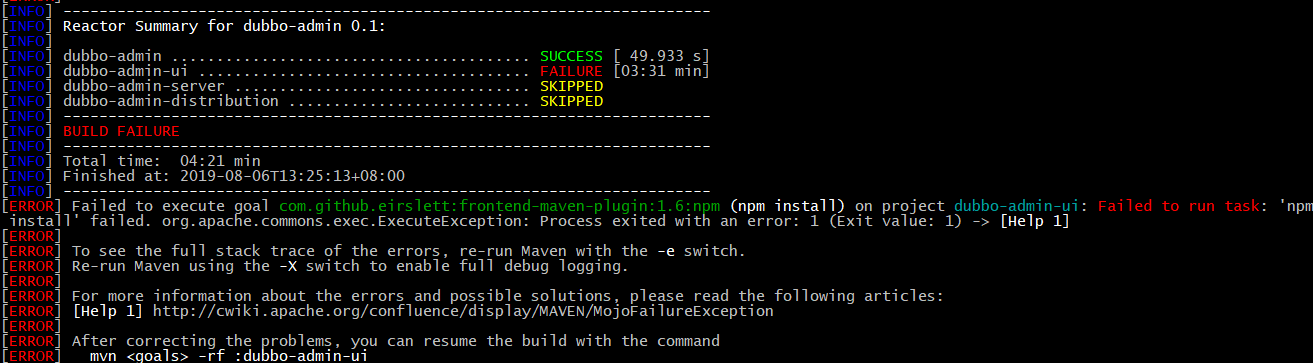

编译报错：需要mvn-3.1.0，而系统mvn版本为：
[root@dubbo-admin dubbo-admin-develop]# mvn -v
Apache Maven 3.0.5 (Red Hat 3.0.5-17)
Maven home: /usr/share/maven
Java version: 1.8.0_191, vendor: Oracle Corporation
Java home: /usr/java/jdk1.8.0_191-amd64/jre
Default locale: en_US, platform encoding: UTF-8
OS name: "linux", version: "3.10.0-957.1.3.el7.x86_64", arch: "amd64", family: "unix"

卸载旧版本maven:
[root@dubbo-admin apache-maven-3.6.1]# yum remove maven -y

编译过程中又出错误，没安装npm包:

# yum install npm

到maven官方站点下载最新maven:

http://maven.apache.org/download.cgi
